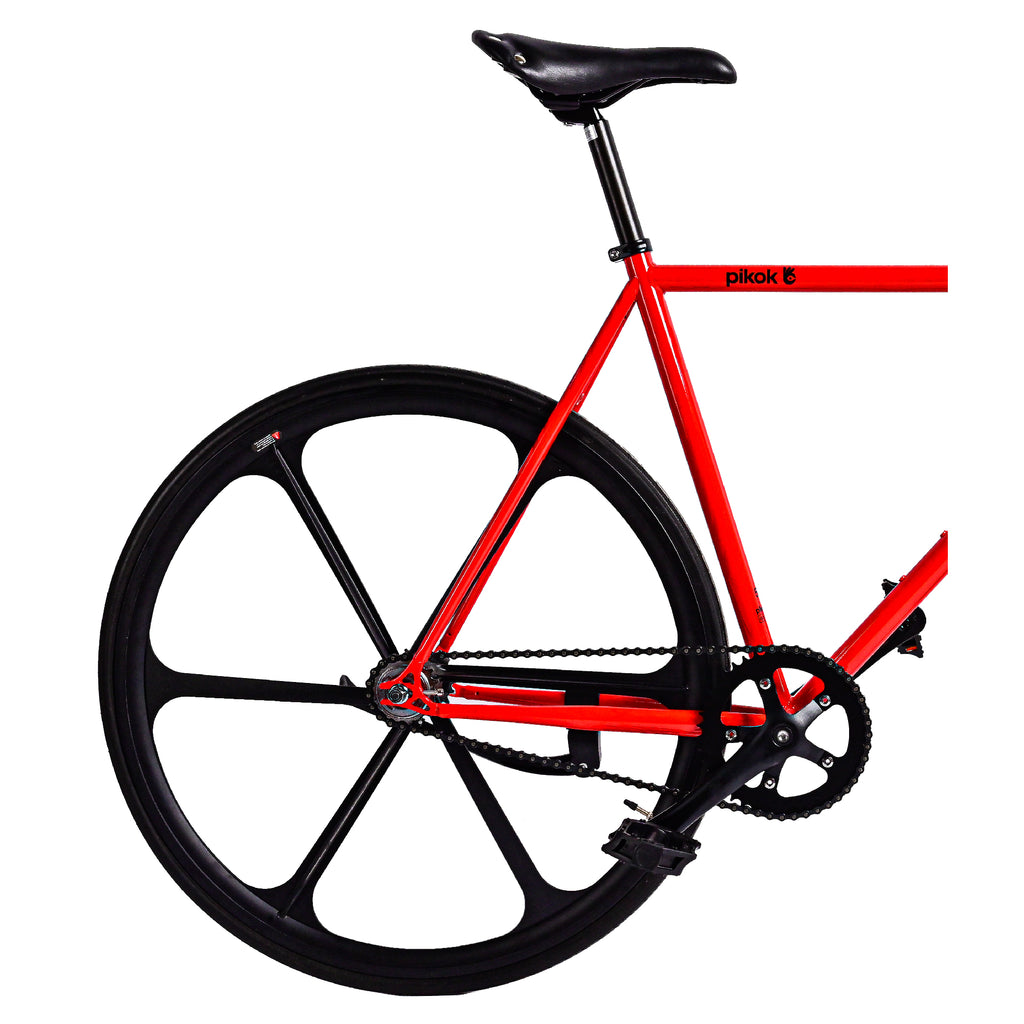

PIKOK CARMINE PF BIKE
- Stylish, lightweight and fast single-speed road bike great for both leisurely rides around the neighborhood and attacking city streets
- Flexible flip-flop rear hub lets you quickly change from fixed gear for a connected feel for the road to freewheel for coasting and cruising
- Durable, fully Tig-welded high tensile steel frame and fork is built to last; front alloy dual pivot brakes for quick stopping
40mm deep-dish wheels with 700 x 25C tires for excellent control and contact with the road; drome saddle for a mix of comfort and style
FRAMESET
Frame: High-Tensile Steel, TIG-Welded, Stronger tube with perfect geometry
Fork: 1-1/8" High-Tensile Steel, Threadless, Stronger tube with Straight Tapered Legs
DRIVETRAIN
Crank Set: Full Alloy, 165mm, with Waterproof screw, pedal spacer
Chainwheel: Steel, 44T x 1/2" x 1/8"
Bottom Bracket: FSA Sealed Bearing, 68 x103mm
Freewheel: 16T x 1/2" x 1/8" , moveable
Chain: 1/2" x 1/8" 94 Links
Pedals: Slip Resistant Top, 9/16"
BRAKES
Front Brake: Full Alloy, Dimension 39-49mm, with quick release and adjustable brake pad
Brake Lever: SRAM AVID, Full Alloy,3-Finger Lever
COMPONENTS
Handlebar:
Riser Handlebar: Alloy 6061, Bar Bore:25.4mm, Width: 540mm, Riser:50mm
Drop Handlebar: Alloy 6061, Bar Bore:25.4mm, Width: 420mm
Stem: 3D CNC, Full Alloy, Threadless (28.6mm), 25.4 mm x 90mm, H36mm, 6deg
Headset: FSA, Alloy with Steel, Threadless, 28.6 x 34 x 23.8mm, Retainer Bearings
Grips: Pikok Rubber Length: 120 mm
Saddle:
Pikok Standard: PU/PVC Steel Rails 270×170mm
Pikok Leather: Nature Leather Rail: Cr-Mo ( CP Silver ) Rivet: Stainless (CP Silver ) Size(mm): 280×170
Seat Post: Alloy W/Integrated Clamp, 27.2 x 300mm
Seat Clamp: Full Alloy CNC, 29.8mm I.D, with Bolt
WHEELS
Front Wheel:
Sunshine: 700C x 42mm deep x 14G 32H, Alloy double wall, Sealed Bearing, Stainless spoke
Star: 700C 6 spoke rim in aluminum magnesium alloy
Rear Wheel:
Sunshine: 700C x 42mm deep x 14G 32H, Alloy double wall, Sealed Bearing, Stainless spoke
Star: 700C 6 spoke rim in aluminum magnesium alloy
Front Hub: Full Alloy, 32H x 14G, Sealed Bearing
Rear Hub: Full Alloy, 32H x 14G, Flip Flop, Sealed Bearing with cog (16T) and locking ring
Spokes: 14G Stainless Steel
Rims: 42mm Alloy Rim, Double Wall
Tires: 700c x 25mm
Tubes: 700c x 25mm, F/Valve (48mm)
